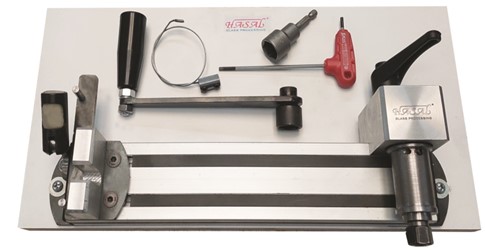

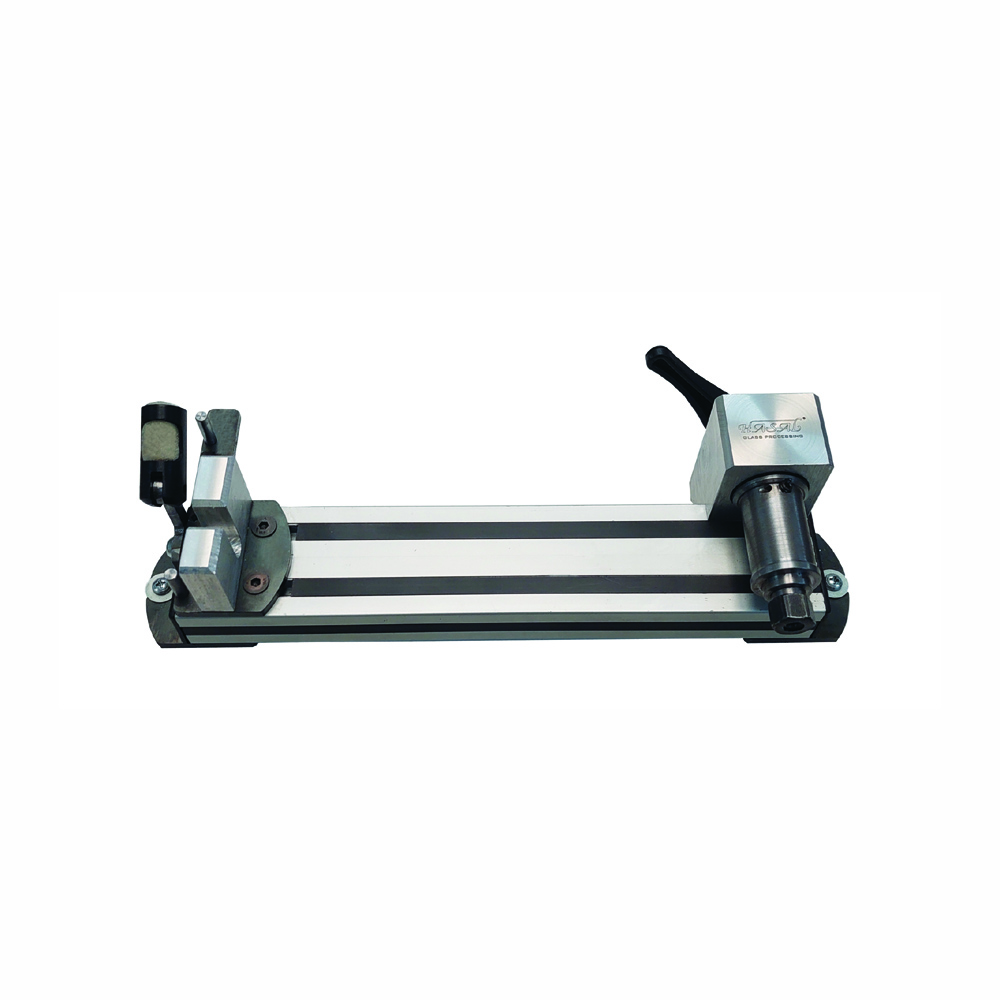

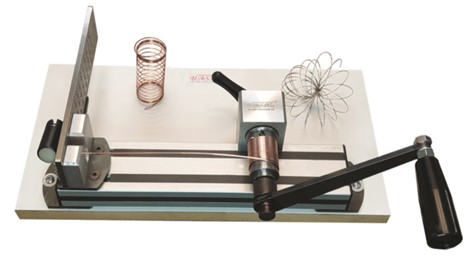

4720-Wire drawing machine

Jewellery Wire Drawing Machine is for drawing gold, silver, and copper wires to thinner diameters.

This machine is made of Aluminium and Steel.

Wire is wrapped on a steel cylinder, which rotates on ball bearings to eliminate friction.

Movable oil sponge lubricates wire to reduce friction and heat.

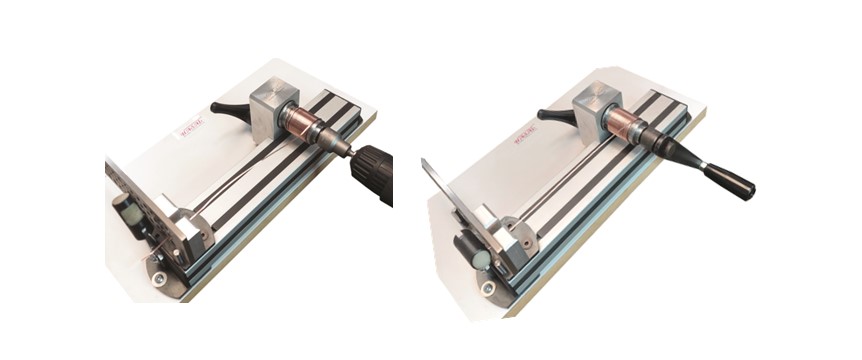

Machine can be used by a hexagon socket handle, or cordless screw driver with socket bit.

Wire gets hard after a few drawing, you may anneal by torch or better to anneal in your enamelling furnace to have homogen annealing.

Steel wire with clamps to draw the wire for connection.

Wire diameter Min: 0,20 – Max: – 2,00 mm

Machine dimensions: 160x350x90mm (h),
