Item code: 4085

Glass blowing Fin Moulds

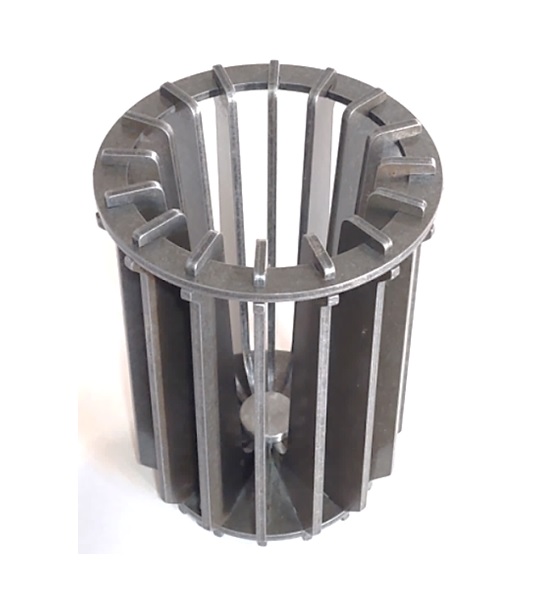

4085- Moulds with fins ,for glass blowing.

-They are used to form grooves on blown glass.

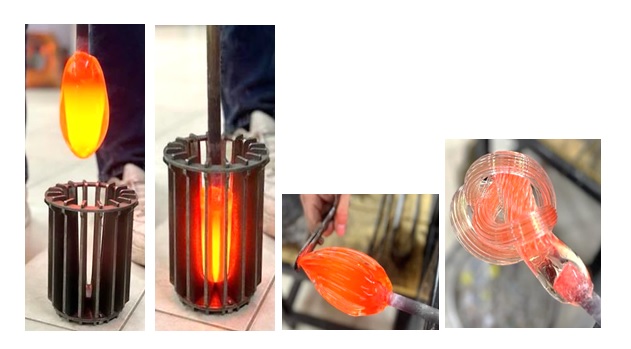

-Hot glass is dipped from open top in the mould.

-Dipping has to be done when the glass is hot and soft,

grooves will occur on the glass surface,

-Then glass can be blown to any shape desired.

-They are closed bottom with curved profile.

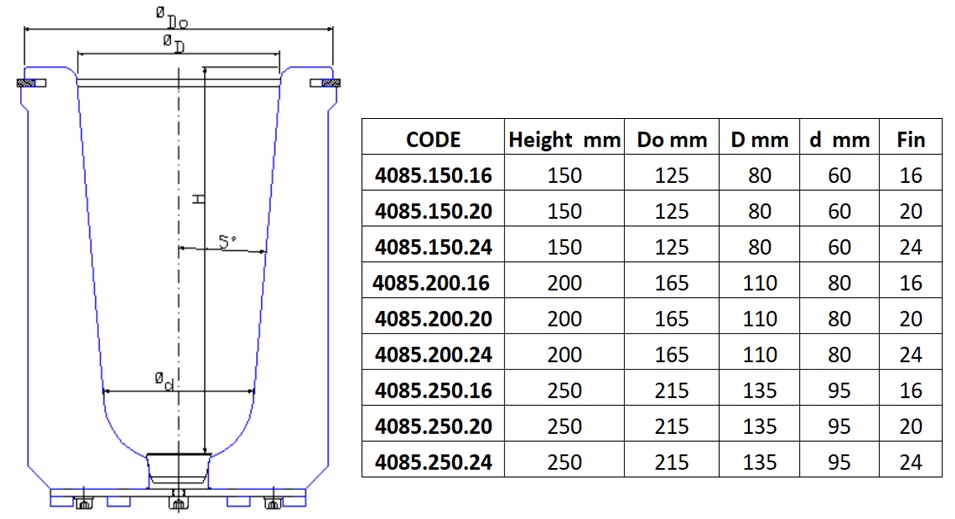

-Different height, diameter and steel fin quantities.

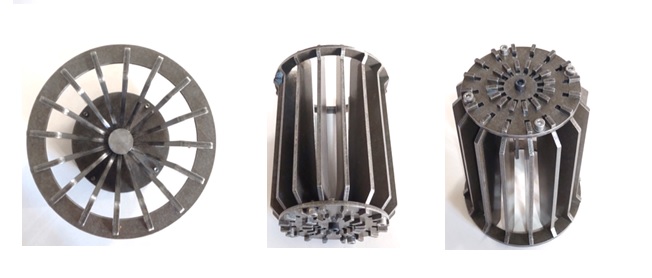

-Fins are detachable, No welding.

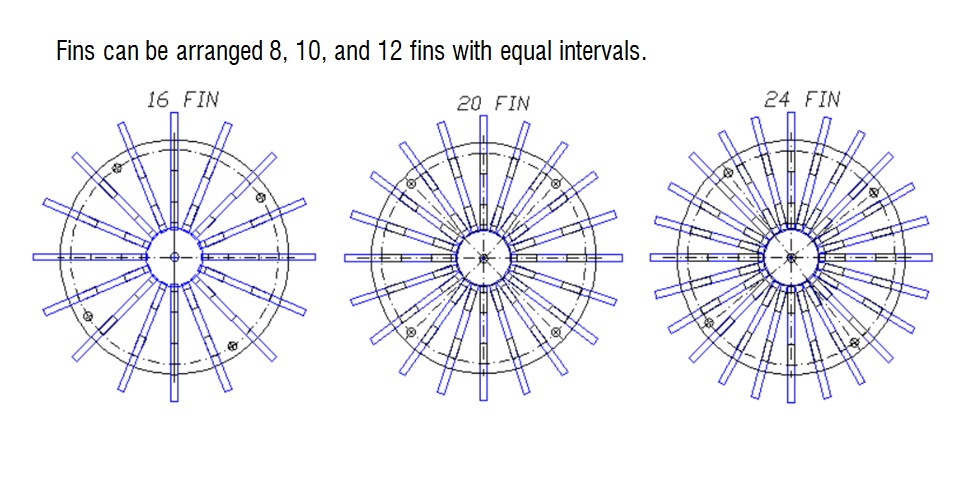

-Fins can be arranged 8, 10, and 12 fins with equal intervals.
-Circular disk at the center, keeps the ribs tight and act as   stop for punty.

-Base is at a 5-degree angle to the vertical ribs.
